ZF自吸泵參數及安裝
- 簡介： ZF耐腐蝕自吸泵參數及安裝，如有疑問，請與13812232712聯系....
參數性能表：
|
參數 |
揚程 |
流量 |
電機功率 |
轉速 |
進口直徑 |
出口直徑 |
|
ZF32-10-3 |
10 |
3 |
0.75 |
2900 |
25 |
20 |
|
ZF40-15-10 |
15 |
10 |
2.2 |
2900 |
40 |
32 |
|
ZF40-20-15 |
20 |
15 |
2.2 |
2900 |
40 |
32 |
|
ZF40-25-12 |
25 |
12 |
2.2 |
2900 |
40 |
32 |
|
ZF50-20-20 |
20 |
20 |
4 |
2900 |
50 |
40 |
|
ZF50-20-18 |
20 |
18 |
4 |
2900 |
50 |
40 |
|
ZF50-25-20 |
25 |
20 |
5.5 |
2900 |
50 |
40 |
|
ZF50-32-20 |
32 |
20 |
5.5 |
2900 |
50 |
40 |
|
ZF65-25-25 |
25 |
25 |
7.5 |
2900 |
65 |
50 |
|
ZF65-25-30 |
25 |
30 |
7.5 |
2900 |
65 |
50 |
|
ZF65-30-30 |
30 |
30 |
7.5 |
2900 |
65 |
50 |
|
ZF65-25-40 |
25 |
40 |
7.5 |
2900 |
65 |
50 |
|
ZF65-32-25 |
32 |
25 |
7.5 |
2900 |
65 |
50 |
|
ZF80-25-30 |
25 |
30 |
11 |
2900 |
80 |
65 |
|
ZF80-30-30 |
30 |
30 |
11 |
2900 |
80 |
65 |
|
ZF80-35-35 |
35 |
35 |
11 |
2900 |
80 |
65 |
|
ZF80-40-40 |
40 |
40 |
11 |
2900 |
80 |
65 |
|
ZF80-30-45 |
30 |
45 |
11 |
2900 |
80 |
65 |
|
ZF100-32-80 |
32 |
80 |
18.5 |
2900 |
100 |
80 |
|
ZF100-35-80 |
35 |
80 |
18.5 |
2900 |
100 |
80 |
|
ZF100-40-100 |
40 |
100 |
30 |
2900 |
100 |
80 |
|
ZF100-45-100 |
45 |
100 |
30 |
2900 |
100 |
80 |
|
ZF100-30-120 |
30 |
120 |
22 |
2900 |
100 |
80 |
|
ZF100-20-130 |
20 |
130 |
22 |
2900 |
100 |
80 |

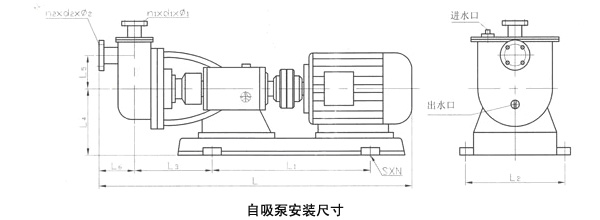

安裝尺寸圖
安裝尺寸表：
|
型 號 |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
H |
n1×d1×Φ1 |
n2×d2×Φ2 |
|
ZF32-10-3 |
475 |
100 |
125 |
195 |
80 |
100 |
95 |
230 |
4×Φ100×13 |
4×Φ100×13 |
|
ZF40-15-10 |
820 |
330 |
260 |
240 |
155 |
165 |
95 |
460 |
4×Φ100×13 |
4×Φ100×14 |
|
ZF50-20-20 |
1040 |
390 |
320 |
190 |
182 |
268 |
120 |
520 |
4×Φ110×13 |
4×Φ100×14 |
|
ZF65-25-25 |
1180 |
600 |
410 |
129 |
262 |
140 |
159 |
540 |
4×Φ145×14 |
4×Φ110×14 |
|
ZF80-25-30 |
1312 |
600 |
410 |
129 |
262 |
140 |
159 |
540 |
4×Φ160×18 |
4×Φ110×14 |
|
ZF100-32-80 |
1380 |
740 |
450 |
110 |
320 |
190 |
230 |
690 |
4×Φ180×18 4×Φ160×18 |
注：因說明書印刷錯誤。上面尺寸圖進出口尺寸搞反了，上面圖所示意的n1×d1×Φ1 應該為進口尺寸。n2×d2×Φ2 應該為出口尺寸
